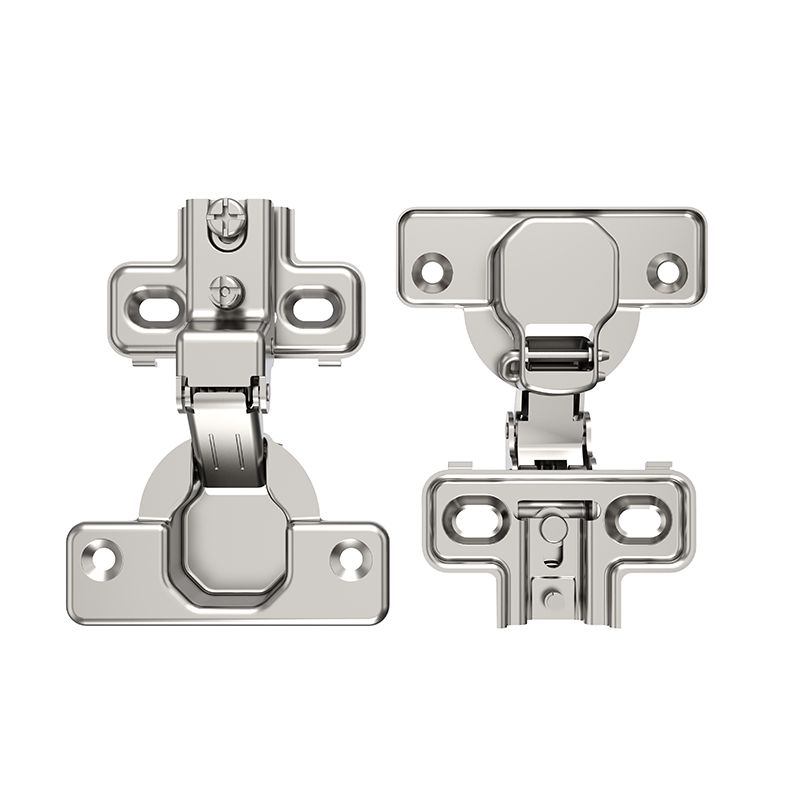

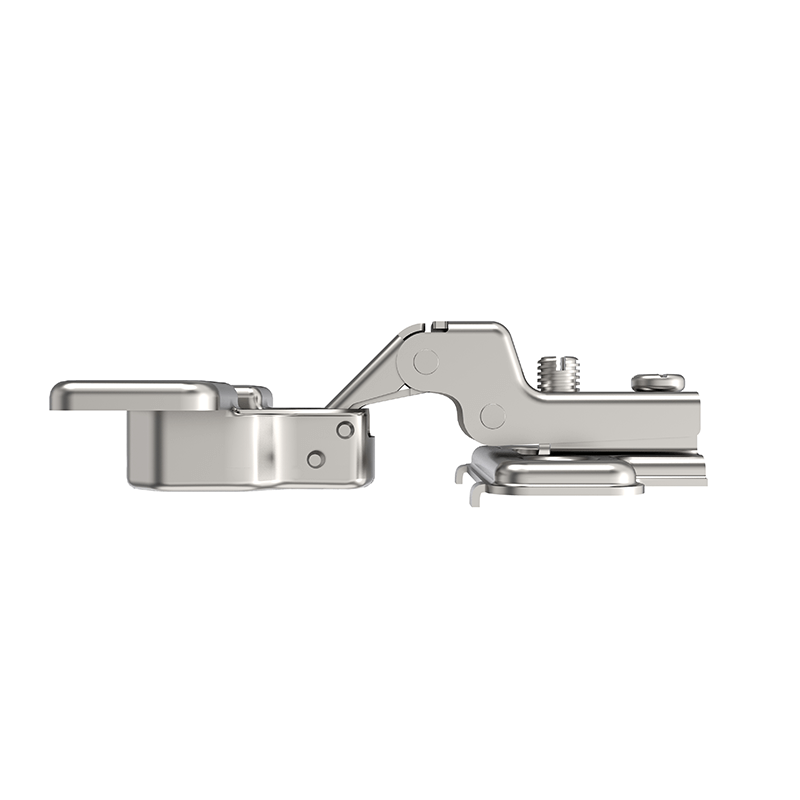

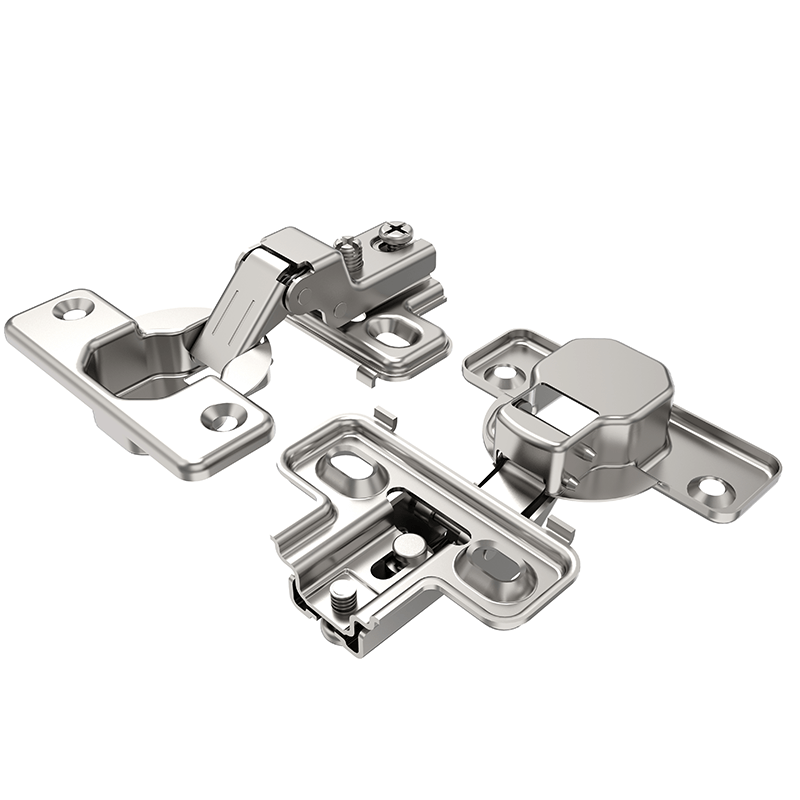

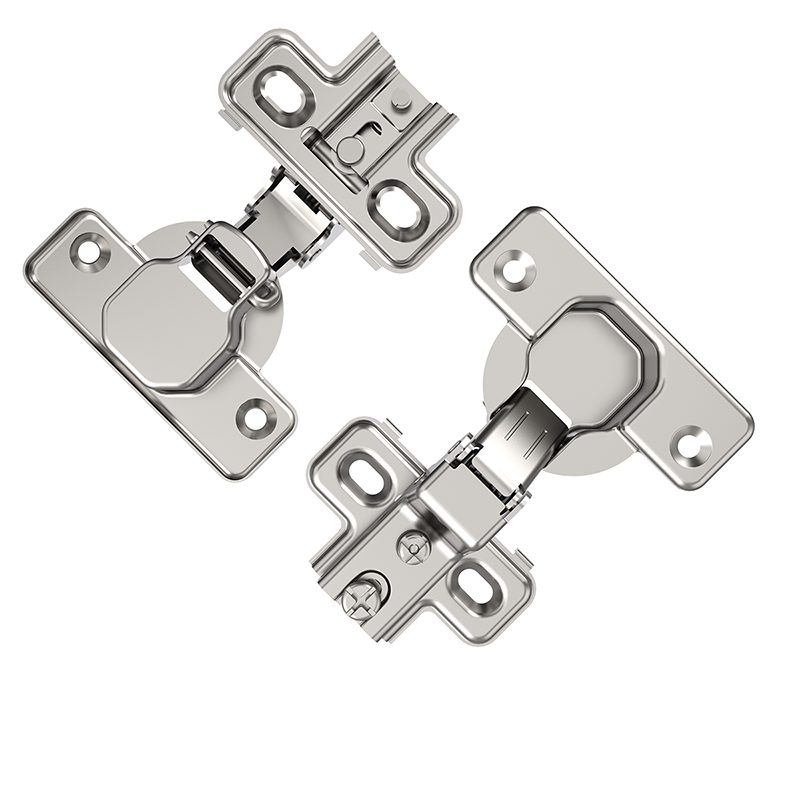

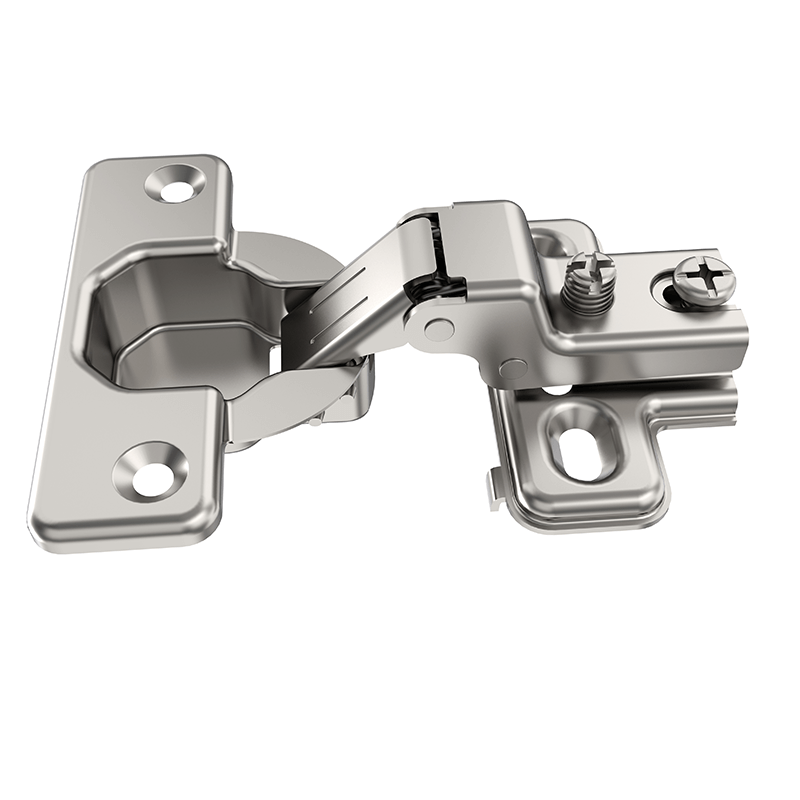

50g Two-way 2 Holes Short Arm Concealed Hinge
(1 customer review)

ITEM NO: 44.42.00305102

This 50g 2-way short arm hinge with 2 holes is half overlay. It is an ideal option for face frame cabinets. It is widely used for all types of cabinets, cupboards, aluminium framed cabinets, wardrobe and bookcase for home, kitchen, bathroom, office, or garage. This two way hinge is without hydraulic mechanism.

Category:
Description

Description

inset cabinet door hinges

Two-Way Short Arm Hinge

  • This two-way slide-on short arm concealed hinge is a half overlay hinge.
  • High-quality steel and strengthened spring for long service life.
  • Nickel-plated finish makes strong corrosion resistance and antioxidation ability.
  • This short arm hinge is without a hydraulic mechanism.
  • Designed for face frame cabinets and aluminum framed cabinets.



  1. Appearance: no defects such as rough plating, bubbles, pinholes, peeling, cracks, stains, discoloration, and partial absence of plating, etc. Slight water stains on the hinge and the situation that non-major surfaces are slightly rough and uneven in color are permissible.
  2. Usability: No jamming or friction sound when opening and closing the hinge.
  3. Adjustability: The 2-way hinge can be adjusted in the range of ±2mm from front to back, left to right, and up to down.
  4. Opening Angle: The angle of the opening short arm hinge shall not be less than 110°.
  5. Accurate size and outstanding product consistency are guaranteed by automated production lines.




hinge manufacturers


Product Name

50g Two-Way 2 Holes Short Arm Concealed Hinge

Cup Diameter

35mm

Cup Depth

10.5mm

Hole Pitch

48mm

Material

Cold-rolled Steel

Finish

Nickel plated

Base

Slide On

Angle of Opening

95°- 110°

Net Weight

50±2g

Door Thickness

14-24mm


wholesale hinges



  • This short arm two way hinge is without a hydraulic mechanism.


Half Overlay

SKU

Type

PCS/CTN

Package Size

Gross Weight/CTN(kg)

44.42.00305102

Half Overlay

250

370*260*240 mm

13.00

The above container load quantity is the reference value.

What is two way hinge?

The main feature of two way hinge is that your cabinet door can stop at any angle when it is opened more than 45 degrees, and the door will close by itself when it is less than 45 degrees. Of course, there are some hinges manufacturers on the market that produce two way hinges that close on their own when your cabinet door is opened less than 30 degrees. You can try opening your kitchen cabinet doors now and verify whether your hinges are one-way hinges or two-way hinges.

Venace two way hinges

Venace’s short arm two way hinges were carefully developed for small cabinet doors to extend their life by providing enough protection against the violent impact energy generated when opening and closing the door. The hinge’s advanced mechanism seamlessly converts kinetic energy into potential energy to close the door with ease.

The short-arm 2 way hinge you need to order depends on the width, height, and type of material of the door. At Venace, our competitive pricing on short arm two way cabinet hinges allows you to purchase in bulk without having to think about over-budget. With our automated growth lines, we produce enough short arm hinges each month to keep up with customer demand and purchases, so you don’t have to worry about lead times and can purchase with confidence. The automated growth line for two way hinges also ensures consistency and quality of products. From the past to the present, Venace’s principle is to produce cost-effective products to meet the needs of customers in specific markets such as Africa and South America. We fully implement ISO 9001 quality control systems, inspection processes, and standards in all stages of production from raw materials to finished products.

If you are a distributor or wholesaler of furniture accessories and are looking for a reliable 2-way short arm hinge supplier in China, then you have come to the right place, please send us your inquiry now and we will contact you within 24 hours. We offer high quality and low price short arm concealed hinge, supporting OEM.
